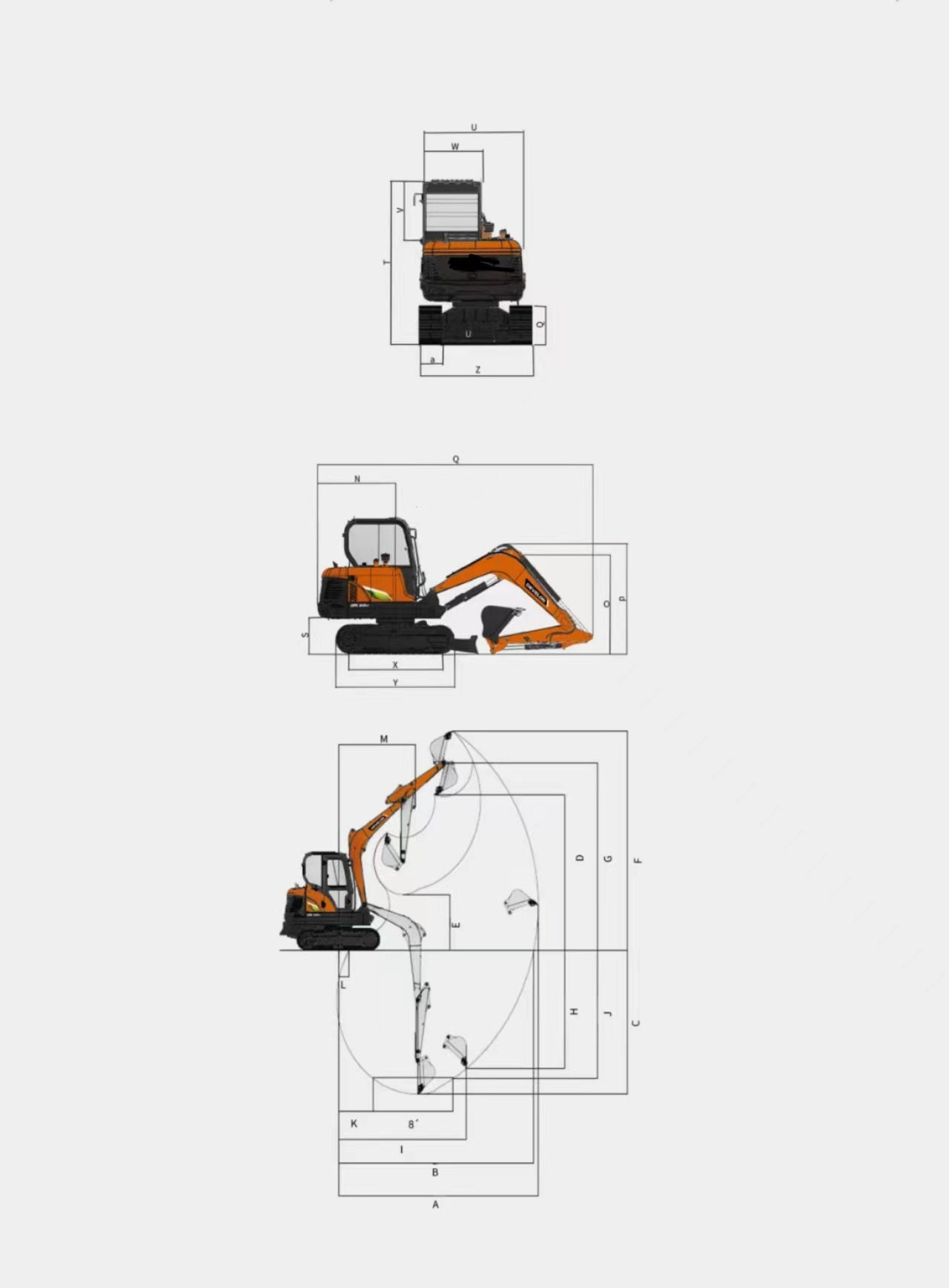

| Transportation height(to the top of thearm) | O | (mm) | 1970 |
| Transportation height(to the top of the hose) | P | (mm) | 2040 |
| Transport length | Q | (mm) | 5870 |
| Transport width | Z | (mm) | 1860 |
| Counter weight ground clearance | S | (mm) | 685 |
| Total high(to the top of the cab) | T | (mm) | 2590 |
| Transit width | U | (mm) | 1765 |
| The height ofthe cab(above the plat form) | V | (mm) | 920 |
| The cab width | W | (mm) | 1030 |
| Guide wheel and drive wheel center distance | X | (mm) | 1990 |
| Track length | Y | (mm) | 2540 |
| Total width | Z | (mm) | 1860 |
| Track width | a | (mm) | 380 |
| Track height | b | (mm) | 615 |
| Mini ground clearance | c | (mm) | 260 |
| Max digging distance | A | (mm) | 6170 |
Max digging distance on ground | B | (mm) | 6033 |
| Digging depth | C | (mm) | 3808 |
| Max loading height | D | (mm) | 4051 |
| Mini loading height | E | (mm) | 1460 |
| Digging height | F | (mm) | 5800 |
| Max height of bucketpin | G | (mm) | 4951 |
| Max vertical arm digging depth | H | (mm) | 2371 |
| Max vertical radius | I | (mm) | 4810 |
| 8 feet max digging depth on flatground | J | (mm) | 3401 |
| 8 fee tmini digging radius on flatground | K | (mm) | 1070 |
| Mini digging distance | L | (mm) | 314 |
| Mini turning radius | M | (mm) | 2365 |
| Tail turning radius | N | (mm) | 1650 |
