| engine |
| Engine Brand Yanmar |
| Engine Model 3TNV80F |
| Rated Power 15.2kW/2500rpm |
| Fuel tank capacity 20L |
| Hydraulic system |
| System working pressure 24.5MPa |
| Maximum flow 70L/min |
| Hydraulic pump type Plunger pump |
| Swing motor type Piston hydraulic motor |
| Travel motor type 2-speed plunger hydraulic motor |
| Highlights |
| 100% no tail |
| Multiple auxiliary control circuits can be selected at the factory |
| Class-leading powertrain |
| Optimized LS load-sensing hydraulic system |
| Large displacement plunger main pump |
| Boom offset |
Crawler frame telescopic |
| Tailor-made electronic control system |
| Reinforced cab, falling object protection (OPG) and rollover protection (TOPS) |
Plunger rotary motor |
Plunger travel motor |

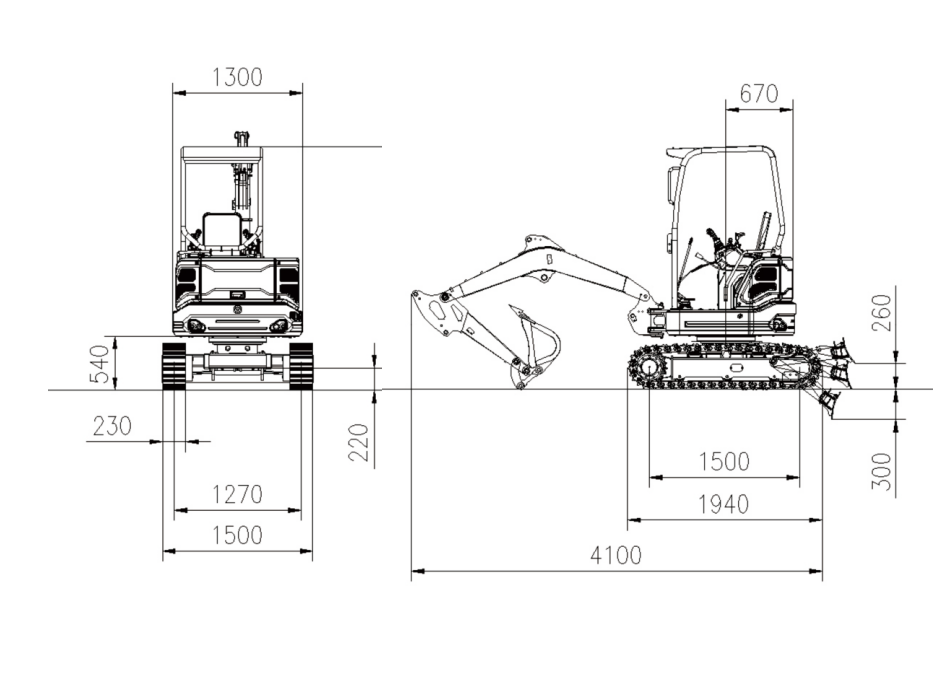

| Machine size |
| Mechanical properties | |
| 1st gear driving speed | 2.5km/h |
| 2 speed gears | 4.5km/h |
| Rotation speed | 9.5r/min |
| Gradeability | 30° |
| Maximum digging force | 20kN |
| Bucket Capacity | 0.068m³ |
| Operating Weight | 2200kg |
| Technical parameters (unit: mm) | |
| Machine height | 2440 |
| Carriage width | 1300 |
| Track gauge | 1070/1270 |
| Width of traveling device | 1300/1500 |
| Track width | 230 |
| Length when transporting | 4100 |
| Minimum ground clearance | 220 |
| Maximum digging height | 4190 |
| Maximum digging depth | 2410 |
| Maximum unloading height | 2880 |
| Maximum digging radius | 4520 |
| Maximum digging radius on the ground | 4400 |
| Tail swing radius | 700 |
| Maximum lifting height of bulldozer | 260 |
| Maximum lowering depth of bulldozer | 300 |
| Maximum swing angle of boom to the left | 65° |
| Maximum swing angle of boom to the right | 50° |

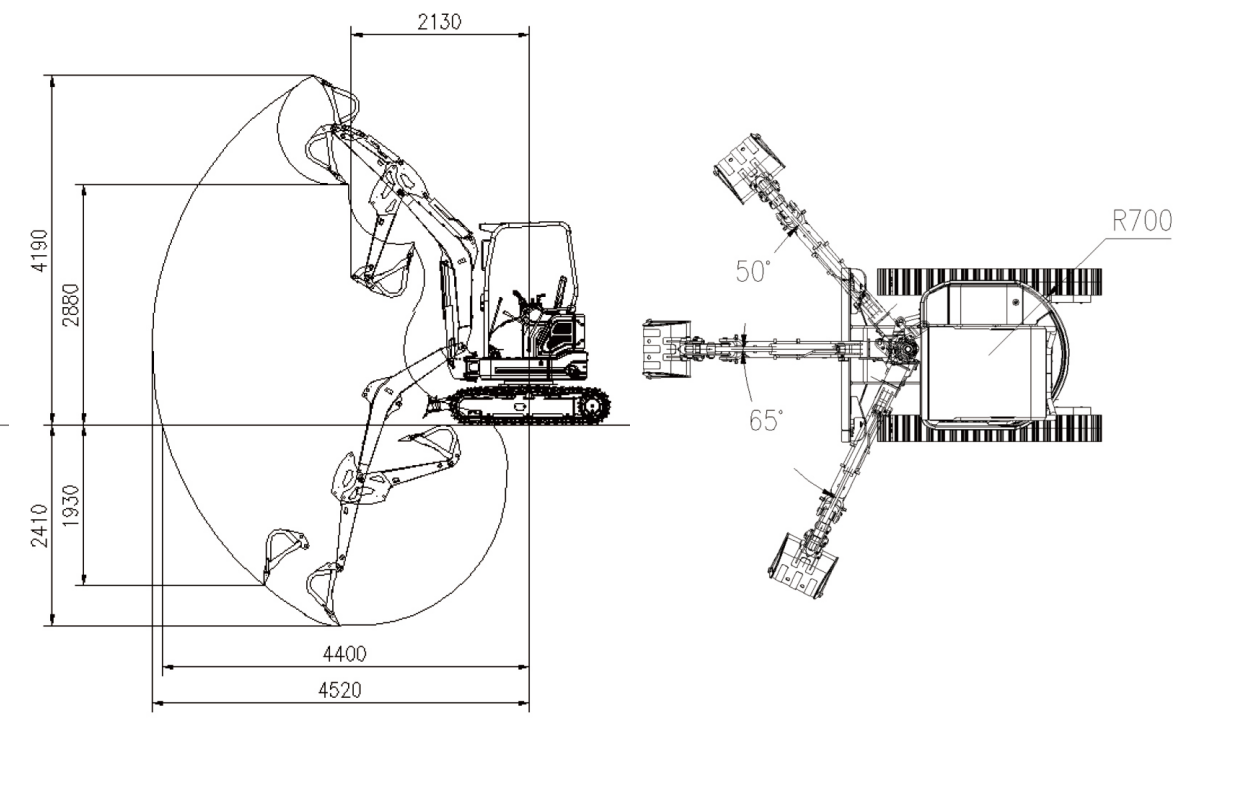

| Working scope | |
