| Hydraulic system | |
| Main pump | Kawasaki |
| Type | variable displacement piston pump |
Rotary system | |
| Rotating speed | 10.0rpm |
| Traveling speed(high/low) | 5.1/3.1km/hr |
| Oils capacity | |
| Fuel tank | 265 |
| Hydraulic tank | 145 |
| Maximum digging force | |
| Bigging bucket | 9.69/10.5ton |
| Bucket arm | 6.3/6.7ton |
| Oil replacement amount | |
Antifreezing solution | 10/12L |
| Travelling gearbox oil | 2×2.5L |
| Rotary reduction box gear oil | 3L |
| Basic parameter | |
| Boom | 4600mm |
| Bucket arm | 2500mm |
| Digging bucket | 0.58m3 |
| Working weight | 14000kg |

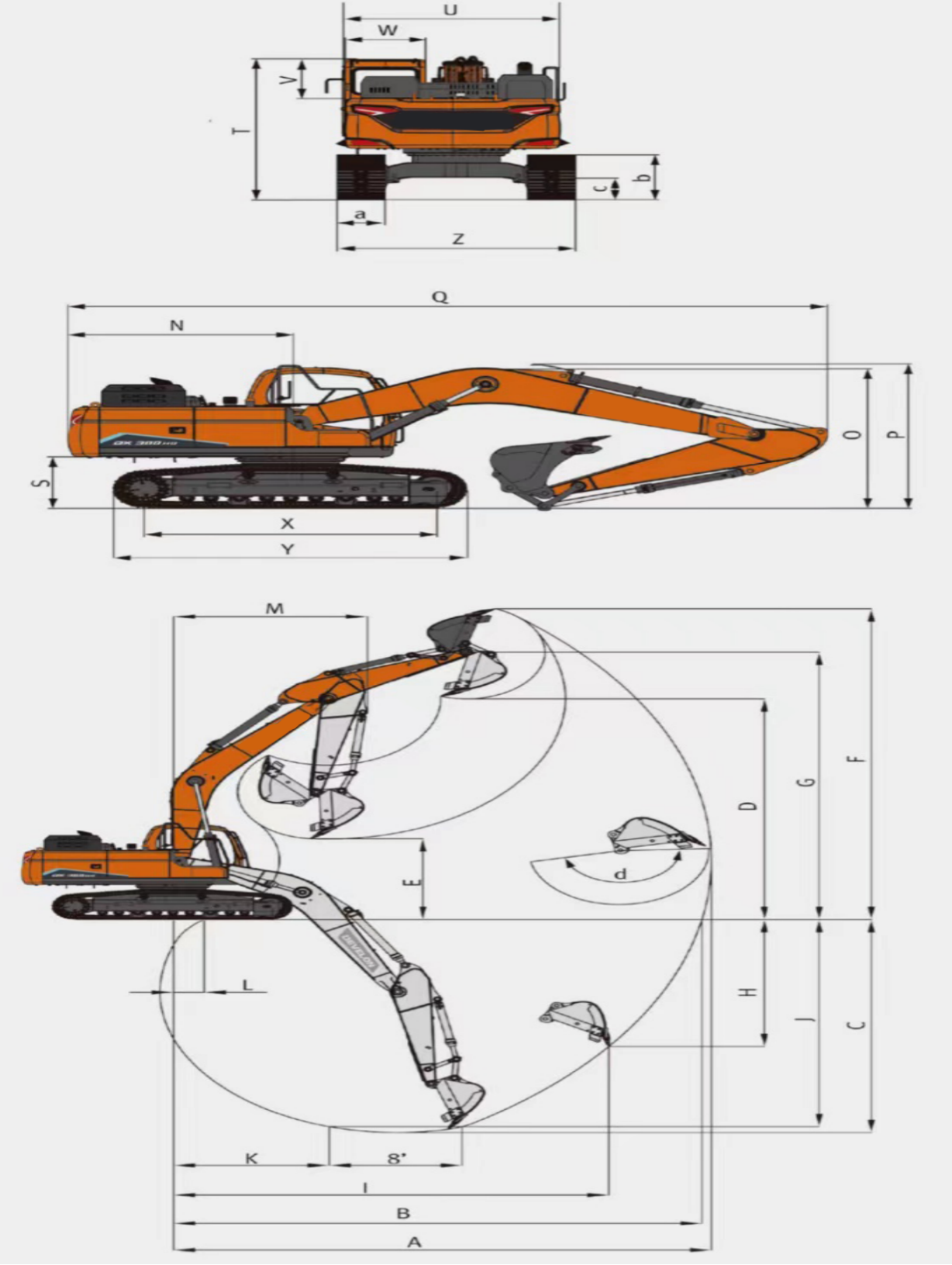

| Transportation height(to the top of thearm) | O | (mm) | 2640 | |
| Transportation height(to the top of the hose) | P | (mm) | 2821 | |
| Transport length | Q | (mm) | 7730 | |
| Transport width | Z | (mm) | 2600 | |
| Counterweight ground clearance | S | (mm) | 875 | |
| Total height((to the top of the cab) | T | (mm) | 2788 | |
| Transit width | U | (mm) | 2515 | |
| Cab height(Above turntable) | V | (mm) | 832 | |
| Cab full width | W | (mm) | 1010 | |
| Guide wheel and drive wheel center distance | X | (mm) | 3034 | |
| Track length | Y | (mm) | 3740 | |
| Total width | Z | (mm) | 2600 | |
| Track width | a | (mm) | 600 | |
| Track height | b | (mm) | 742 | |
| Mini ground clearance | C | (mm) | 414 | |
| Max digging distance | A | (mm) | 8301 | |
| Max digging distance on ground | B | (mm) | 8157 | |
| Digging depth | C | (mm) | 5623 | |
| Max loading height | D | (mm) | 6315 | |
| Mini loading height | E | (mm) | 2176 | |
| Digging height | F | (mm) | 8759 | |
| Max height of bucketpin | G | (mm) | 7550 | |
| Max vertical arm digging depth | H | (mm) | 2861 | |
| Max vertical radius | I | (mm) | 5387 | |
| Mini digging distance | L | (mm) | 284 | |
| Mini turning radius | M | (mm) | 2374 | |
| Bucket extension angle | d | (°) | 179 | |
| Tail turning radius | N | (mm) | 2247 | |
