| Complete machine quality | 13500kg |
| Rated bucket capacity | 0.57m³ |
| Engine power rating | 154KW |
Rotation speed | 12.1rpm |
| Travel speed | 38/10km/hr |
| Climbing capacity | 70% |

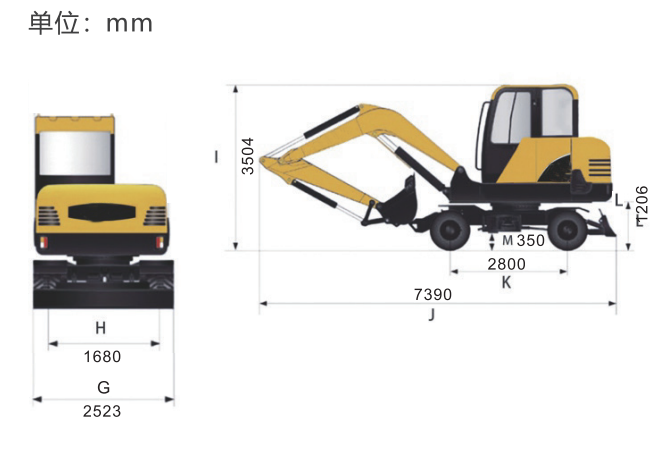

| Transport length | 7350mm |
| Transport width | 2523mm |
| Transport height | 3500mm |
| Turning radius | 2468mm |
| Turntable height from the ground | 1260mm |
| Turntable width | 2480mm |
| Turntable end length | 2250mm |
| Minimum ground clearance | 350mm |
| Distance from the centre of the slewing centre to the centre of the drive wheel | 1780 front / 1100mm rear |
| Wheelbase | 2880mm |
| Wheelbase | 2240mm |

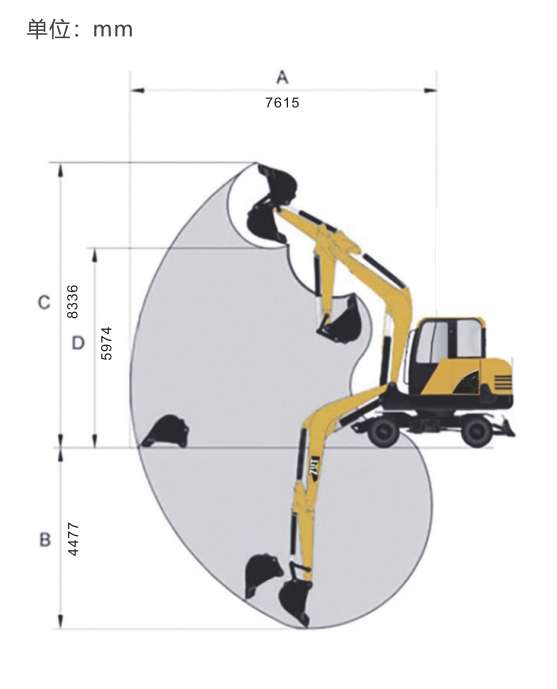

| Maximum digging radius | 7700mm |
| Maximum digging depth | 4477mm |
| Maximum digging height | 8336mm |
| Maximum unloading height | 6030mm |
| Engines | QSB5.9-C210-30 |
| Main control valve | TX-22 |
| Travel motors | A6VM107 |
| Slewing motors | SD79 |
| Hydraulic main pumps | K5V80 |
| Centre joint | Imported from Korea |
