HYDRAULIC BREAKER

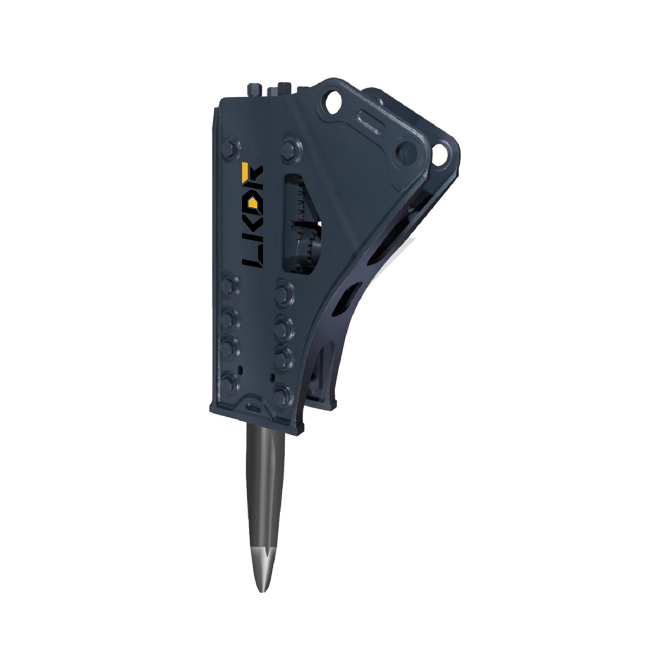

SIDE TYPE HYDRAULIC BREAKER
| Model | Unit | ZUT135 | ZUT140 | ZUT140B | ZUT155 | ZUT165 | ZUT175L | ZUT195A | ZUT200A | ZUT210 | ZUT220 | ZUT230 |
| Host weight | kg | 820 | 840 | 890 | 1260 | 1306 | 1780 | 2355 | 2830 | 2890 | 3730 | 4530 |
| Operating Weight | kg | 1575 | 1630 | 1885 | 2655 | 2735 | 3740 | 5118 | 6105 | 6150 | 7040 | 8160 |
| Operating pressure | kg/cm | 160-180 | 160-180 | 160-200 | 180-200 | 180-200 | 200-240 | 240-320 | 250-330 | 280-330 | 280-330 | 320-380 |
| Required Oil Flow | I/min | 130-150 | 120-180 | 140-200 | 180-240 | 180-240 | 220-270 | 220-300 | 250-320 | 290-320 | 300-350 | 300-350 |
| Impact Rate | bpm | 350-600 | 350-350 | 450-600 | 300-450 | 250-400 | 200-300 | 140-180 | 120-180 | 120-180 | 120-180 | 120-180 |
| Hose Diameter | mm | 25.4 | 25.4 | 25.4 | 25.4 | 25.4 | 31.75 | 31.75 | 38.1 | 38.1 | 38.1 | 38.1 |
| Tool Diameter | mm | 135 | 140 | 140 | 155 | 165 | 175 | 195 | 200 | 210 | 210 | 230 |
| Dig bucket volume | m³ | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 | 1.4-0.1.8 | 1.4-1.8 | 1.6-2.2 | 1.8-2.4 | 2.4-3.2 | 2.4-3.2 | 2.4-3.2 |
| Suitable Excavator | ton | 18-25 | 18-26 | 20-30 | 28-35 | 30-40 | 34-45 | 45-60 | 50-60 | 60-80 | 60-80 | 80-140 |
| Main valve type |
| external | internal | external | external | external | external | external | external | external | external | external |
| Accumulator |
| have | none | have | have | have | have | have | have | have | have | have |
