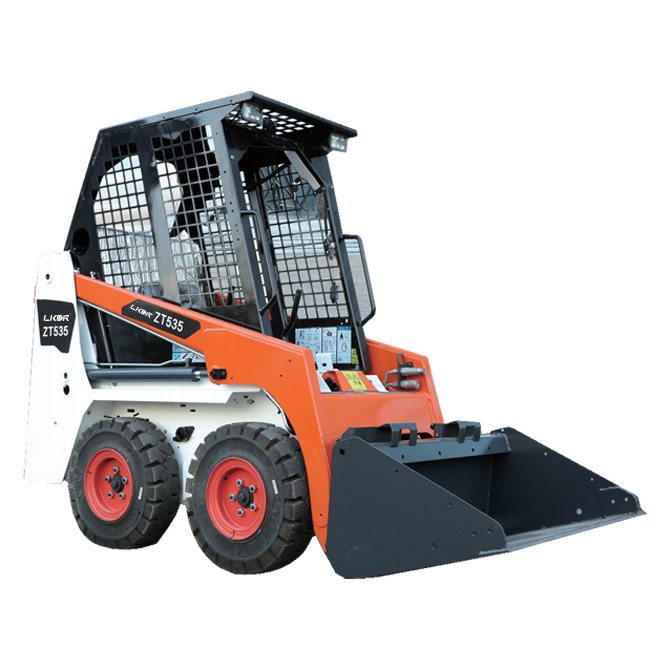

ZT535 Skid Steer Loader
| The author of this article is | |
| Rated operating capacity | 343 kg |
| Tipping load | 686 kg |
| Pump capacity | 37 Minimum value at 100% efficiency |
| System safety valve at quick connector | 207 bar |
| Maximum driving speed | 9.8 km/h |
| The best way to get started | |
| Brand/Model | Kubota/D1105-EF02 |
| Fuel/Cooling | Diesel/Liquid |
| Maximum power at 3000rpm (SAE J1349) | 18.2 kW |
| Torque at 2200 rpm (SAE J1349) | 62.8 Nm |
| Number of cylinders | 1001 cm³ |
| replace | 3 |
| Fuel tank capacity | 24L |
| Standard Features |
| Plug Bob Tachometer™ Frame |
| (BICS) Engine/Hydraulic |
| System shutdown assistance |
| Hydraulic system |
| High back cushioning suspension |
| Seat Instruments |
| Lift arm bracket |
| 23 x 5.70-12, 4-ply, narrow |
| Tire work lights, front and rear cab |
| Parking brake |
| *Rollover Protective Structure (ROPS) |
| weight | |
| Weight Working Weight | 1268 kg |
| control | |
| Vehicle Steering System | km/h Direction and speed controlled by two handles |
| Loader Hydraulic Tilt and Lift | Independent foot pedal |
| Front Assist System | Lateral movement of the right steering lever |
| Drive system | |
| transmission | Infinitely variable tandem hydrostatic piston pump driving two fully counter-rotating hydrostatic motors |
| Options | |
| Heated Enclosed Cab | 23 x 8.50-12, 6-ply, heavy duty tire |
